Why do I need it?

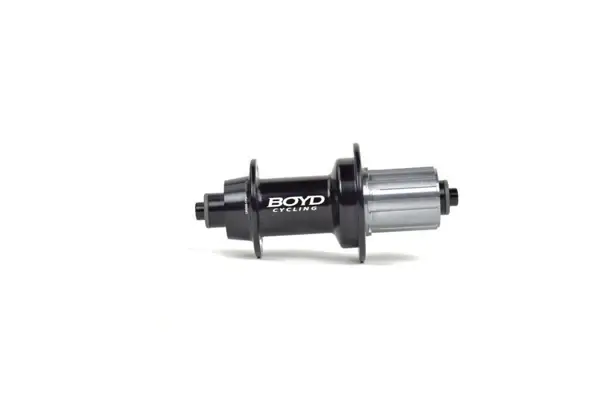

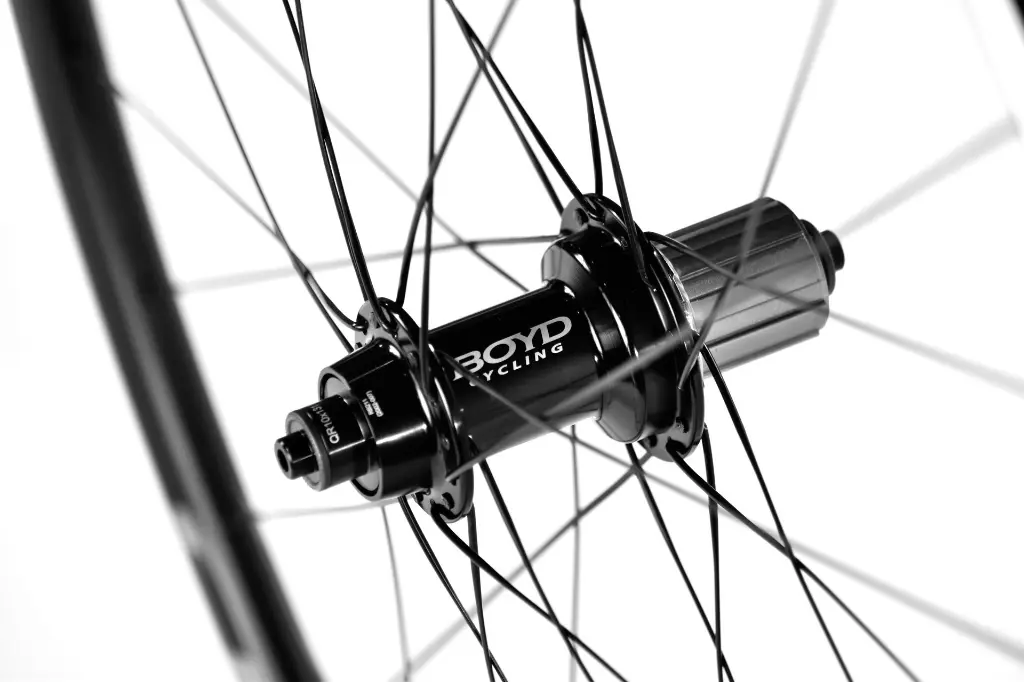

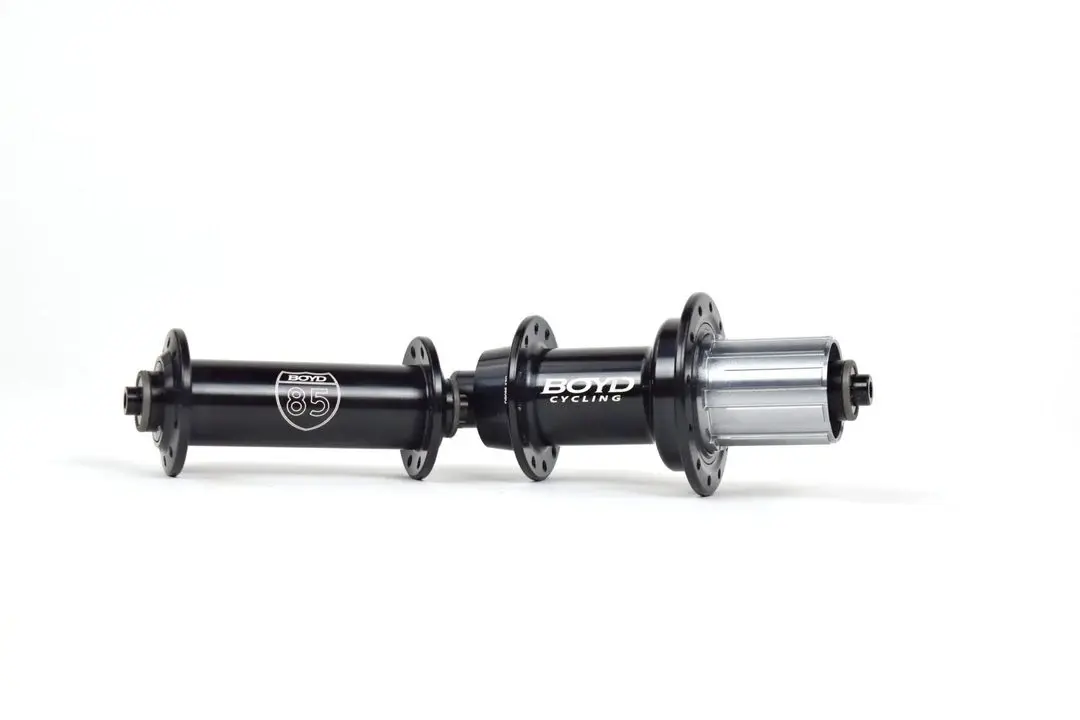

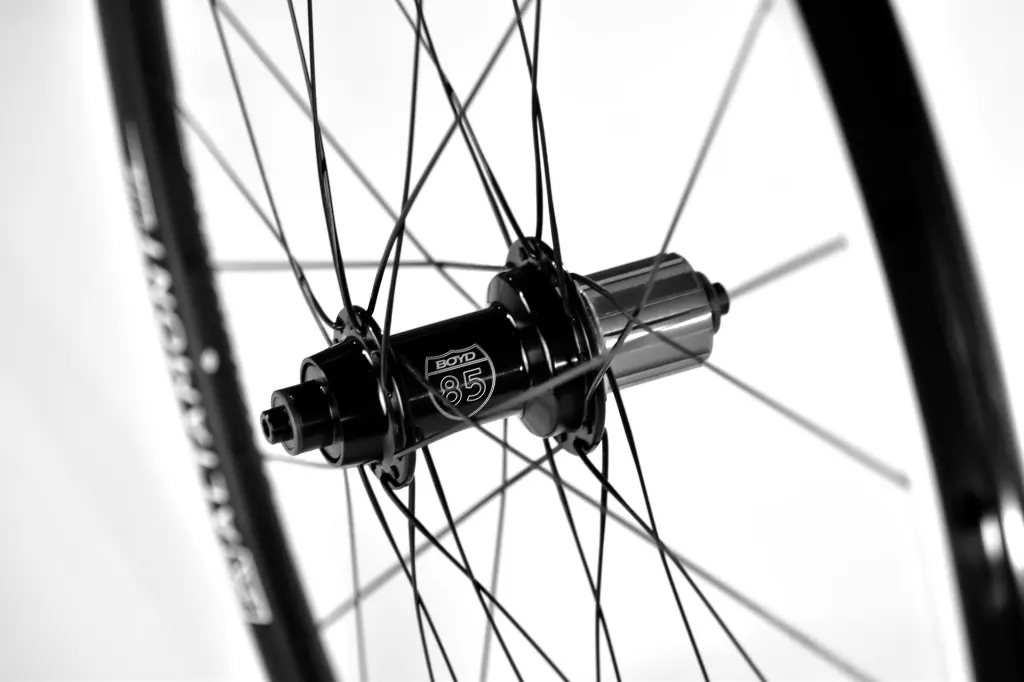

The 85 hubs from Boyd Cycling are a premier rim brake hub that offers lightweight, simplicity, quick engagement, and top of the line Enduro Abec 5 bearings.
Tool free service allows for easy cleaning and maintenance of the hub, resulting in a longer lasting and better performing hub. Wide flange spacing allows for better bracing angles and a stiffer overall wheel system.
The 85 hubs feature 36 teeth and 6 pawls that engage in a 3x3 manner. This gives an incredibly quick 5 degree engagement, so when you stomp on the pedals your bike instantly responds.
Oversized bearings give higher static loads, and better longevity of the bearings.
Bearing sizes are as follows
Front hub – 2X 6901
Rear hub – 2X 6902 in the hub shell; 2X MR15267 in the freehub body
Weights for the hub are as follows
Front – 100 grams
Rear – 254 grams
Wheel Building Specs
Drive side spoke hole diameter – 55.5mm
Center of hub to center of drive side flange – 17.3mm
Non-drive side spoke hole diameter – 44.5mm
Center of hub to center of non-drive side flange – 37.7mm
