Why do I need it?
The Quest hubs help to make the best responding wheelset you can get. With a combination of low weight, quick responsiveness, and tool free service, the Quest hubs give you the performance you need with the ease of maintenance to give your wheels running at top performance.
Tool free service allows for easy cleaning and maintenance of the hub, resulting in a longer lasting and better performing hub. Wide flange spacing allows for better bracing angles and a stiffer overall wheel system.
The Quest hubs feature 36 teeth and 6 pawls that engage in a 3x3 manner. This gives an incredibly quick 5 degree engagement, so when you stomp on the pedals your bike instantly responds.
Oversized bearings give higher static loads, and better longevity of the bearings.
Bearing sizes are as follows
Front hub – 2X 6901
Rear hub – 2X 6902 in the hub shell; 2X MR15267 in the freehub body
Weights for the hub are as follows
Front – 120 grams
Rear – 250 grams
Wheel Building Specs
Standard Front Hub (100mm)
Rotor Side PCD - 45mm
Non Rotor Side PCD - 38mm
Center to center of rotor - 21.9mm
Center to center of non rotor - 34.6mm

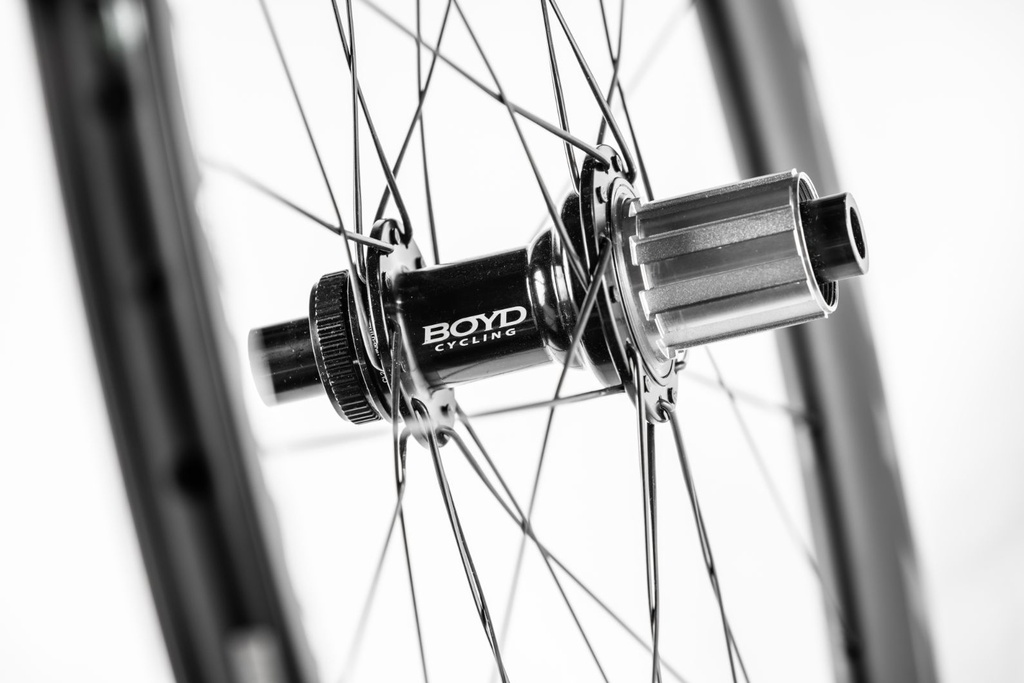

Standard Rear Hub (142mm)
Drive Side PCD - 55.5mm
Non Drive Side PCD - 45mm
Center to center of drive side - 18.2mm
Center to center of non drive side - 35.2mm
Spoke Hole Size - 2.5mm
