85 Road Hubs

The 85 Road hubs from Boyd Cycling are one of the highest quality rim brake hub sets on the market. With tool free service, swappable freehub bodies, and lightning quick 5 degree engagement, the 85 hubs are sure to excel in every type of riding.

5
Degrees of Engagement
36
Teeth in Hub Shell
100
Grams - Front
254
Grams - Rear

Bearings

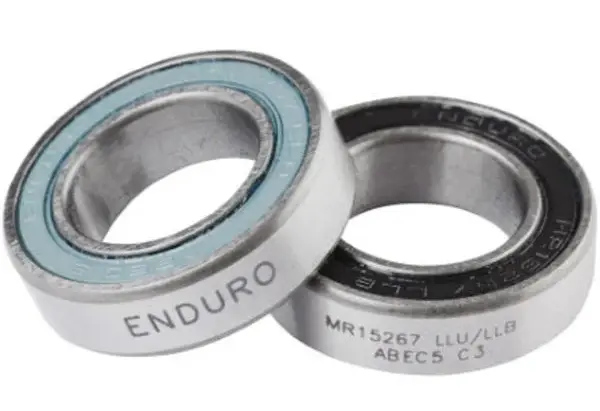

The 85 Hubs spin on Enduro Abec 5 LLU/LLB bearings. Considered some of the highest quality bearings in the industry, the Enduro bearings ensure the greatest longevity in the hubs.

Bearing Sizes
Front: 2x 6901
Rear Hub Shell: 2x 6902
Rear Freehub Body: 2x 15267

Dimensions

Hub Dimensions help build a better wheel. If you are looking to build a wheel up using the 85 Road hub, these are the dimensions you need.

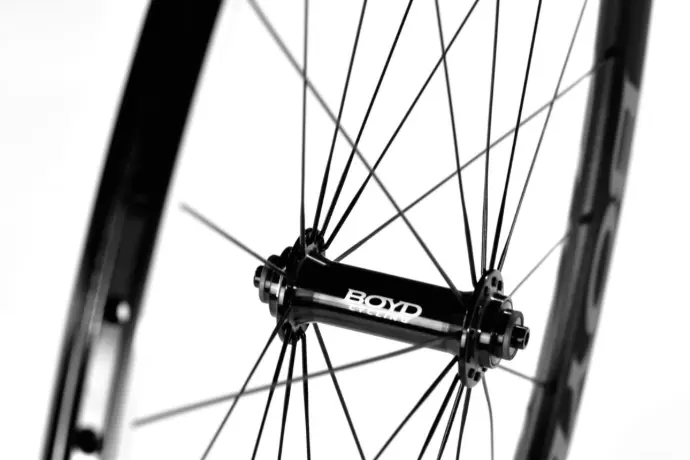

FRONT

  • Center of hub to center of flanges – 39.0mm
  • Flange spoke hole diameter – 36.5mm

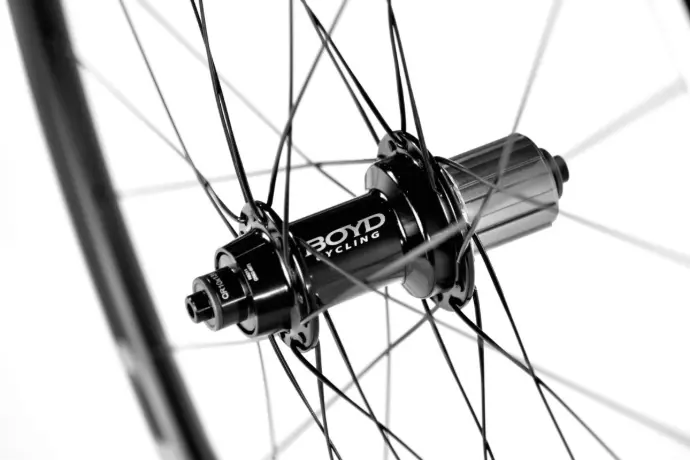

REAR

  • Drive side spoke hole diameter – 55.5mm
  • Center of hub to center of drive side flange – 17.3mm
  • Non-drive side spoke hole diameter – 44.5mm
  • Center of hub to center of non-drive side flange – 37.7mm

Weights

FRONT - 100 Grams

REAR - 254 Grams
